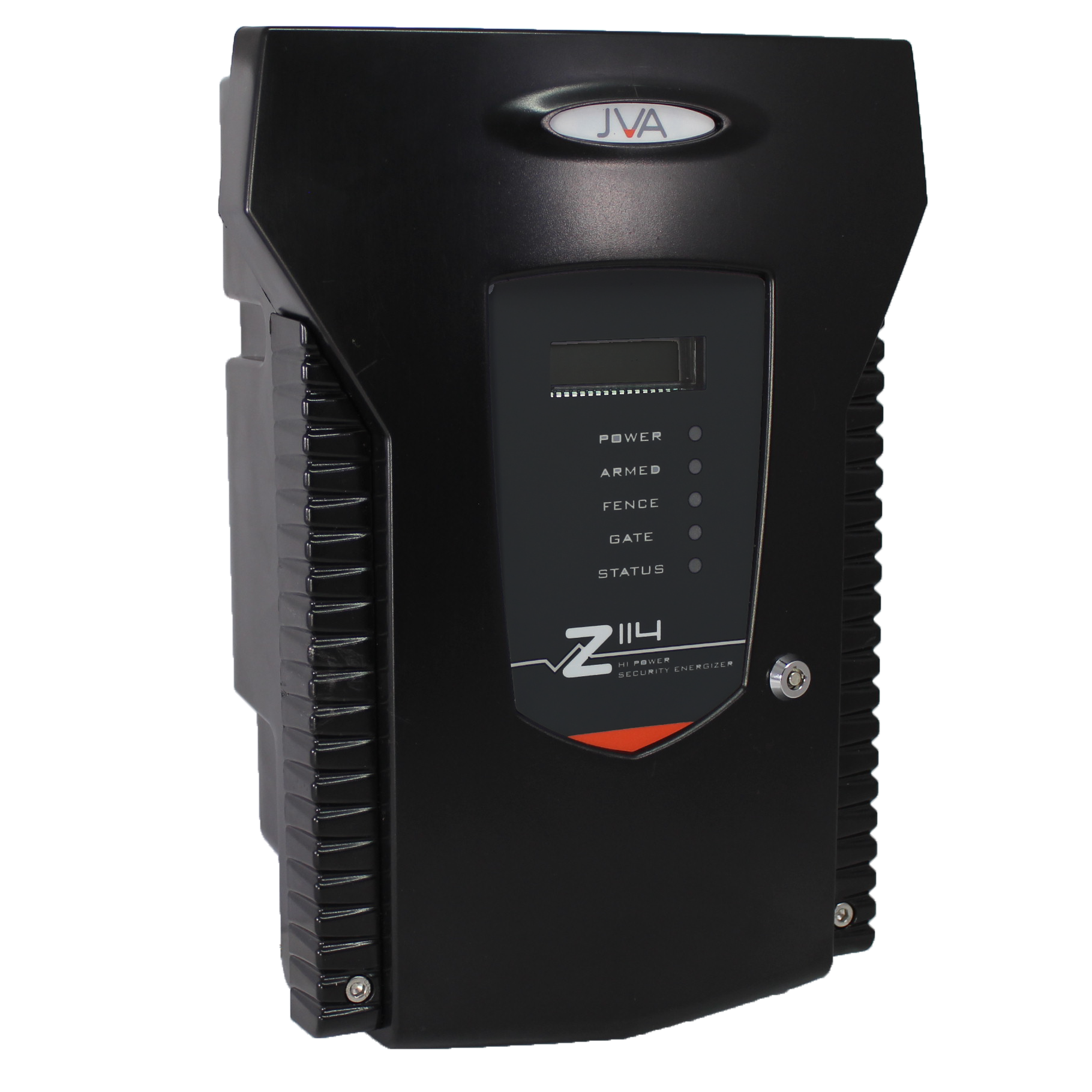

Modern JVA Z114 1 Zone Security Energizer 14 Joule with LCD Display

The JVA Z-Range of One‐Zone Security Energizers with LCD displays are top‐of‐the‐range energizers meeting all requirements from the basic home security fence to fully integrated high profile installations. These energizers have LCD displays showing out and return voltages, battery condition and fence programming settings.

The units are fully compatible with the Z‐Range keypad and when wired up to a keypad are fully programmable. The energizers can be networked with other Z‐Range energizers to synchronize pulses and become a multi‐zone group for larger sites where many zones are required. These energizers can be controlled by a PC or up to 3 keypads, or 1 keypad up to 14 Z‐Range energizers.

Features

• High‐Voltage, Single‐Zone Fence Monitor triggers alarm when live wires are tampered with
• Earth Wire Monitor triggers alarm when the earth wires are tampered with
• LCD Voltage Out and Return Display
• Gate Monitor input to monitor the gate
• Dynamic Voltage Monitoring minimizing arcing and false alarms while maximizing power and battery life
• 14 Joules maximum output energy
• Compliant with IEC60335‐2‐76
• Built‐in Lightning and Surge Protection
• Up to 24‐Hour Monitoring in the event of a power failure
• High and low power options
• Energizer supplied with secure Key Switch Operation
• Diagnostic Mode
• 2 Standard Fully Programmable Relays plus option for 3 more on request
• Keypad Compatible – Use a Z‐Range Keypad
• Programmable to Bi-polar or Standard
• Pulse Synchronization in group mode
• Anti-tamper option programmable on request
• Internal Battery Backup in case of power failure

Notes

• 12V 7ah battery included.

• Power Supply 24VDC 5A 120W 220V
